HSR85CA THK滑塊 THK導軌 日本滑塊導軌

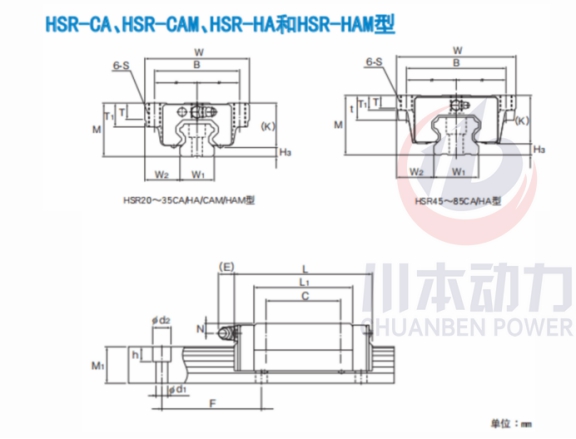

外形尺寸 | 高度M | 110 | mm |
寬度W | 215 | mm | |
長度L | 245.6 | mm | |
LM滑塊尺寸 | B | 185 | mm |
C | 140 | mm | |
S | M20 | mm | |
L1 | 178.6 | mm | |
t | 55 | mm | |
T | 28 | mm | |
T1 | 30 | mm | |
K | 94 | mm | |
N | 23 | mm | |
E | 16 | mm | |
油嘴 | B-PT1/8 | mm | |
H3 | H3 | 16 | mm |
LM導軌尺寸 | 寬度W1±0.05 | 85 | mm |
W2 | 65 | mm | |
高度M1 | 65 | mm | |
孔距F | 180 | mm | |
d1*d2*h | 24*35*28 | mm | |
長度*Max | 3000 | mm | |
基本動額定載荷 | C | 304 | kN |
基本靜額定載荷 | C0 | 355 | kN |
靜態容許力矩 | MA單滑塊 | 10.2 | kN-m |
MA雙滑塊 | 51.2 | kN-m | |
MB單滑塊 | 10.2 | kN-m | |
MB雙滑塊 | 51.2 | kN-m | |
MC單滑塊 | 12.8 | kN-m | |
重量 | LM滑塊 | 17 | kg |
LM軌道 | 35.2 | kg/m |
