HSR45LB THK滑塊 THK導軌 日本滑塊導軌

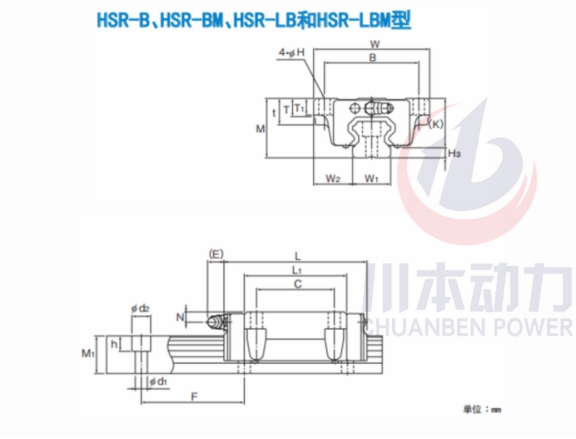

外形尺寸 | 高度M | 60 | mm |
寬度W | 120 | mm | |
長度L | 170.8 | mm | |
LM滑塊尺寸 | B | 100 | mm |
C | 80 | mm | |
H | 11 | mm | |
L1 | 129.8 | mm | |
t | 25 | mm | |
T | 13 | mm | |
T1 | 15 | mm | |
K | 50 | mm | |
N | 10 | mm | |
E | 16 | mm | |
油嘴 | B-PT1/8 | mm | |
H3 | H3 | 10 | mm |
LM導軌尺寸 | 寬度W1±0.05 | 45 | mm |
W2 | 37.5 | mm | |
高度M1 | 38 | mm | |
孔距F | 105 | mm | |
d1*d2*h | 14*20*17 | mm | |
長度*Max | 3090 | mm | |
基本動額定載荷 | C | 100 | kN |
基本靜額定載荷 | C0 | 135 | kN |
靜態容許力矩 | MA單滑塊 | 2.59 | kN-m |
MA雙滑塊 | 13.4 | kN-m | |
MB單滑塊 | 2.59 | kN-m | |
MB雙滑塊 | 13.4 | kN-m | |
MC單滑塊 | 2.6 | kN-m | |
重量 | LM滑塊 | 3.3 | kg |
LM軌道 | 11 | kg/m |
