HSR35CB THK滑塊 THK導軌 日本滑塊導軌

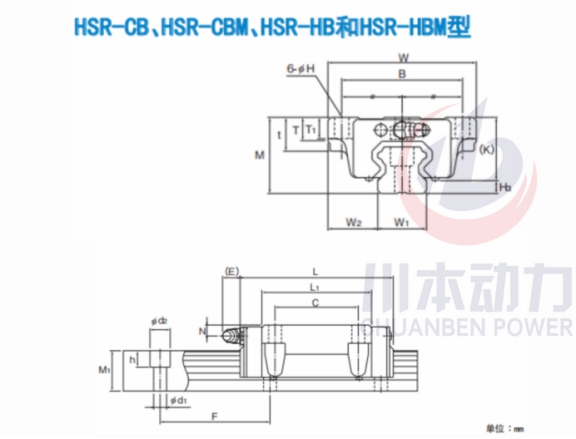

外形尺寸 | 高度M | 48 | mm |
寬度W | 100 | mm | |
長度L | 109.4 | mm | |
LM滑塊尺寸 | B | 82 | mm |
C | 62 | mm | |
H | 9 | mm | |
L1 | 80.4 | mm | |
t | 21 | mm | |
T | 12 | mm | |
T1 | 13 | mm | |
K | 40.5 | mm | |
N | 8 | mm | |
E | 12 | mm | |
油嘴 | B-M6F | mm | |
H3 | H3 | 7.5 | mm |
LM導軌尺寸 | 寬度W1±0.05 | 34 | mm |
W2 | 33 | mm | |
高度M1 | 29 | mm | |
孔距F | 80 | mm | |
d1*d2*h | 9*14*12 | mm | |
長度*Max | 3000 | mm | |
基本動額定載荷 | C | 53.9 | kN |
基本靜額定載荷 | C0 | 70.2 | kN |
靜態(tài)容許力矩 | MA單滑塊 | 0.895 | kN-m |
MA雙滑塊 | 4.51 | kN-m | |
MB單滑塊 | 0.895 | kN-m | |
MB雙滑塊 | 4.51 | kN-m | |
MC單滑塊 | 1.05 | kN-m | |
重量 | LM滑塊 | 1.6 | kg |
LM軌道 | 6.6 | kg/m |
