HSR30HA THK滑塊 THK導軌 日本滑塊導軌

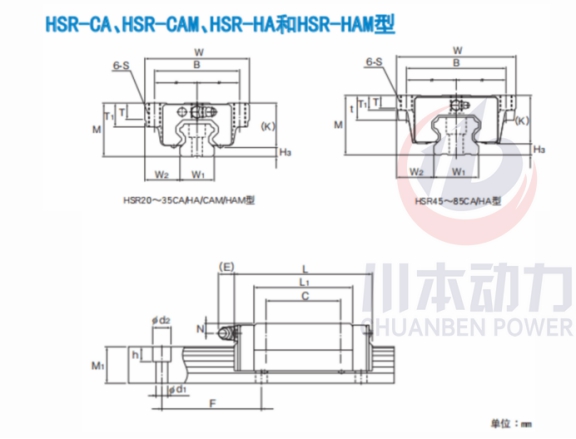

外形尺寸 | 高度M | 42 | mm |
寬度W | 90 | mm | |
長度L | 120.6 | mm | |
LM滑塊尺寸 | B | 72 | mm |
C | 52 | mm | |
S | M10 | mm | |
L1 | 93 | mm | |
t | - | mm | |
T | 9 | mm | |
T1 | 18 | mm | |
K | 35 | mm | |
N | 7 | mm | |
E | 12 | mm | |
油嘴 | B-M6F | mm | |
H3 | H3 | 7 | mm |
LM導軌尺寸 | 寬度W1±0.05 | 28 | mm |
W2 | 31 | mm | |
高度M1 | 26 | mm | |
孔距F | 80 | mm | |
d1*d2*h | 9*14*12 | mm | |
長度*Max | 3000 | mm | |
基本動額定載荷 | C | 48.9 | kN |
基本靜額定載荷 | C0 | 70.2 | kN |
靜態容許力矩 | MA單滑塊 | 0.995 | kN-m |
MA雙滑塊 | 4.89 | kN-m | |
MB單滑塊 | 0.995 | kN-m | |
MB雙滑塊 | 4.89 | kN-m | |
MC單滑塊 | 0.852 | kN-m | |
重量 | LM滑塊 | 1.3 | kg |
LM軌道 | 4.8 | kg/m |
