HSR15B THK滑塊 THK導軌 日本滑塊導軌

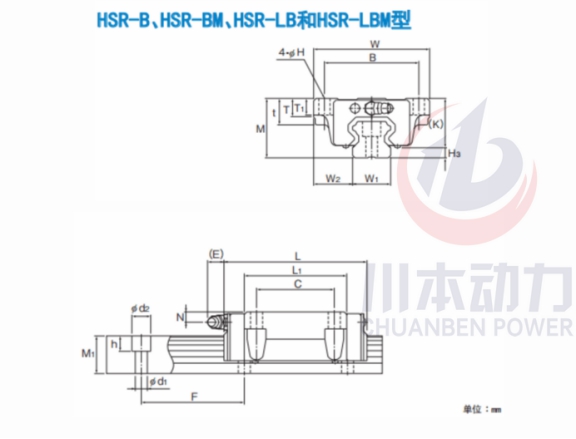

外形尺寸 | 高度M | 24 | mm |
寬度W | 47 | mm | |
長度L | 56.6 | mm | |
LM滑塊尺寸 | B | 38 | mm |
C | 30 | mm | |
H | 4.5 | mm | |
L1 | 38.8 | mm | |
t | 11 | mm | |
T | 7 | mm | |
T1 | 7 | mm | |
K | 19.3 | mm | |
N | 4.3 | mm | |
E | 5.5 | mm | |
油嘴 | PB1021B | mm | |
H3 | H3 | 4.7 | mm |
LM導軌尺寸 | 寬度W1±0.05 | 15 | mm |
W2 | 16 | mm | |
高度M1 | 15 | mm | |
孔距F | 60 | mm | |
d1*d2*h | 4.5*7.5*5.3 | mm | |
長度*Max | 3000 | mm | |
基本動額定載荷 | C | 10.9 | kN |
基本靜額定載荷 | C0 | 15.7 | kN |
靜態(tài)容許力矩 | MA單滑塊 | 0.0945 | kN-m |
MA雙滑塊 | 0.527 | kN-m | |
MB單滑塊 | 0.0945 | kN-m | |
MB雙滑塊 | 0.527 | kN-m | |
MC單滑塊 | 0.0998 | kN-m | |
重量 | LM滑塊 | 0.2 | kg |
LM軌道 | 1.5 | kg/m |
